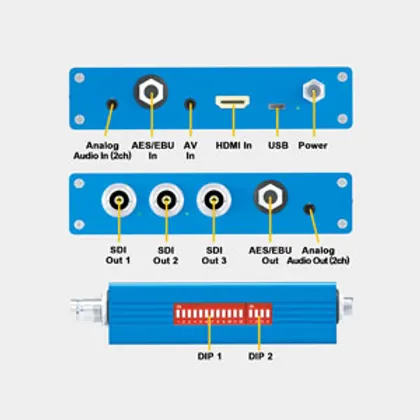

CB-2022 / HDMI & AV to 3G-SDI Scaling Converter
Features & Benefits
- Input: HDMI×1, AV×1, AES/EBU×1, Analog Audio×1 (2ch)
- Output: 3G-SDI×3, AES/EBU×1, Analog Audio×1 (2ch)
- Up/down scaling and frame rate conversion
- AES/EBU or Analog Audio Embedding & De-embedding
- Input signal automatic detection and configuration
- LED indicators for power and signal lock
- Control easily via the DIP switches
- Remote control for PC via USB
- Threaded locking power connector
- Detachable bracket design for wall mounting
- You can simply program the setting of CB-2022 through the DIP switches at the back panel without the need for additional programing tools. This can be quite convenient in a field application. You can also program CB-2022 using your PC through the USB connection. You can also update the firmware with this method.
- CB-2022 can transmit the converted SDI signals to three separate devices through three separately buffered output ports, thus maintaining stable signal quality over a long distance.
