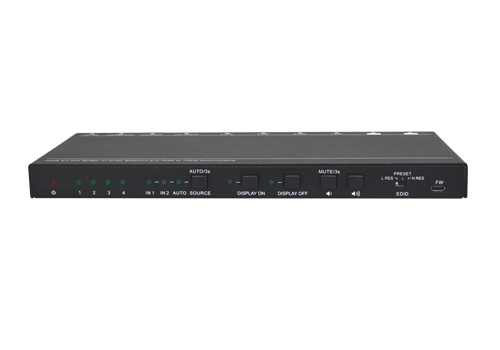

RL-DA24UHD

RL-DA24UHD

MP-DA24UHD is a HDMI 2.0 2×4 Splitter, which can distribute either one of two HDMI inputs to four outputs. It supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D and multichannel audio formats. Except passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the rear panel. It can de-embed HDMI digital audio to stereo analog L/R and Toslink SPDIF audio outputs to provide audio sources for existing audio system.

Category:

Description

  • Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4.
  • HDMI inputs support HDCP 2.2 and the outputs support HDCP1.4.
  • Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications.
  • Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P display.
  • 18Gbps high bandwidth.
  • Features RCA (L/R) jack and Toslink connector for audio de-embedded.
  • Advanced EDID management: multiple preset and user defined allowed.
  • Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
  • Supports CEC control to turn on/off displays and adjust their volume.
  • Provides LEDs to indicate the current operating status and to assist troubleshooting and installation.
  • Firmware upgrade by Micro-USB port.
